Copying

This section describes how to load originals and copy them to plain paper loaded in the cassette.

  1. Pull out the cassette (A) from the printer.

  2. Remove the cassette cover (B).

  3. Slide paper guides (C) in front and (D) on right to open guides.

  4. Load plain paper in portrait orientation WITH PRINT SIDE FACING DOWN.

  5. Align paper guides (C) in front and (D) on right with paper length and width.

  6. Mount cassette cover (B) and insert cassette into printer.

    After inserting the cassette into the printer, the paper setting confirmation screen for the cassette appears on the touch screen.

  7. If page size on touch screen matches size of paper loaded in cassette, select Yes.

    If not, select Change to change the setting in accordance with the size of the loaded paper.

  8. Open operation panel (E), pull out paper output tray (F) and paper output support (G), and then open output tray extension (H).

    Be sure to open the operation panel before printing. If the operation panel is close, the printer does not start printing.

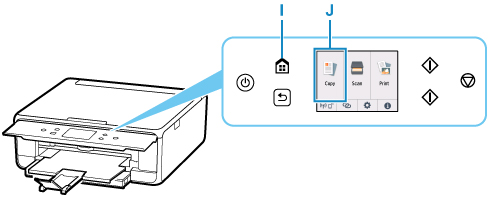

  9. Press HOME button (I).

  10. Select Copy (J).

  11. Select Standard copy.

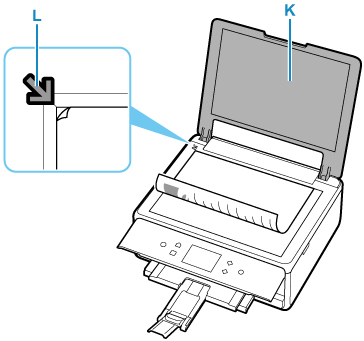

  12. Open document cover (K).

  13. Load original WITH SIDE TO COPY FACING DOWN and align it with alignment mark (L).

  14. Close the document cover.

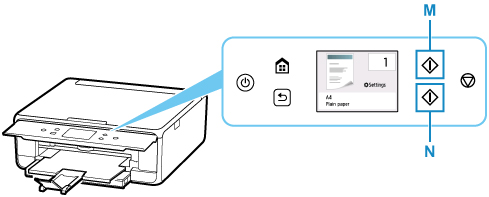

  15. Check paper settings and press Black button (M) or Color button (N).

Important

  • Do not open the document cover until copying is complete.

Note

  • Your printer is equipped with many other convenient copy features.
